     Featured on BIMMERPOST.com

Bilal, Eventuri’s head of engineering, has released a detailed deep dive video exploring the design and development of the G8X M2, M3, and M4 turbo inlets that are included with every Eventuri S58 intake system. His walkthrough provides a rare look into the airflow theory, packaging constraints, and performance targets that shaped the final production components. For enthusiasts who want to understand how and why these parts make a difference, it offers valuable insight into the level of engineering behind what appears to be a simple section of the intake path.

On the G8X platform, most performance conversations revolve around the components you can immediately see such as the intake system, exhaust, software, and turbochargers. Yet one of the most influential parts of the entire airflow path sits just before the compressor and rarely gets the attention it deserves. The turbo inlet plays a critical role in determining how efficiently the turbocharger operates, how quickly it responds, and how much power the system can ultimately support.

As power levels on the S58 continue to climb, the importance of this section of the intake tract becomes increasingly clear. The inlet is the final pathway the air travels before reaching the turbocharger. Any disruption here forces the turbo to work harder to achieve the same result, increasing thermal load and reducing overall efficiency.

We’ve included the full engineering video here and highly recommend taking the time to watch it:

The Limitation in the Factory Inlet Path
The OEM S58 inlet design is a product of mass production priorities. It must fit within tight packaging constraints, meet cost targets, and integrate seamlessly into a wide range of operating conditions. While it performs well for a stock vehicle, it introduces several compromises when airflow demand increases.

The factory geometry includes sharp directional changes, uneven internal transitions, and localized reductions in cross sectional area. These characteristics create turbulence and pressure loss just before the compressor. Instead of delivering a clean, stable column of air, the turbocharger receives airflow that has already lost energy.

That loss has a measurable effect. The turbocharger must operate at a higher shaft speed to reach the same boost target, which increases heat and reduces the efficiency window in which it performs best.







Airflow Efficiency vs Simply Increasing Size
A common misconception in the aftermarket is that the largest possible inlet will automatically deliver the best performance. In reality, airflow behavior is defined by balance.

If the internal volume is too small, the system becomes restrictive. If it is too large, air velocity drops and response suffers.

The goal is to maintain the correct cross sectional area for the engine’s airflow demand while preserving velocity and minimizing turbulence throughout the entire path.

This is where true inlet design separates itself from simple pipe replacement. Smooth, continuous curvature and controlled area transitions allow air to remain stable as it approaches the compressor. Maintaining that stability reduces pressure drop and allows the turbocharger to operate in a more efficient range.









Boundary Layer Control and the Internal Dimple Design
One of the most overlooked details in the Eventuri S58 turbo inlet design is the use of a textured internal surface in specific areas of the flow path. Rather than leaving the entire inlet wall completely smooth, the inlets incorporate a series of dimples that are strategically positioned to manage the boundary layer as airflow approaches the turbocharger.

As air moves through an intake tract, a thin layer of slower moving air forms along the inner wall. This is known as the boundary layer. In areas where the airflow is forced to change direction or expand, that slow moving layer can separate from the surface. When separation occurs, turbulence increases, effective flow area is reduced, and pressure losses rise.

The dimple pattern is used to keep that boundary layer attached to the wall.

By energizing the thin layer of slower moving air near the surface, the dimples help the main airflow column remain stable through transitions in the inlet geometry. This reduces flow separation in critical zones and allows the turbocharger to receive a more uniform and higher energy air stream.

In practical terms, this results in:

• More consistent airflow into the compressor
• Reduced localized turbulence before the turbo
• Improved efficiency at higher load and boost levels





This approach is supported by published fluid-dynamics research on dimpled internal flow surfaces which shows increased momentum exchange near the wall and improved flow attachment through transitions.

Manufacturing Method and Why 3D Printing Was Required
The internal dimple structure cannot be produced using conventional manufacturing methods. The geometry exists inside a fully enclosed and continuously changing inlet path.

Additive manufacturing was the only viable solution.

By using a high temperature 3D printed construction, Eventuri was able to form the inlet as a single piece with the dimples integrated directly into the internal wall. This ensures the airflow path, cross sectional transitions, and surface texture all match the development data and remain stable under heat.





What This Means for Turbocharger Operation
With a smoother, less restrictive route to the compressor:

• Boost builds more progressively
• Transient response improves
• The mid range becomes more immediate
• The turbo operates in a more efficient zone



The Missing Link in the S58 Airflow System
By improving the final section of the intake path before the compressor, the entire system operates under better conditions. The turbocharger works less for the same result. Temperatures remain more stable. Response improves. Power becomes more repeatable.





Designed for the Way the Platform Is Used
From daily driven cars to high output builds, the S58 continues to push into higher performance territory. Supporting that progression requires components that are engineered with efficiency, thermal control, and airflow stability in mind.

Installed photos of the complete intake system. Beyond the extensive year long research and development and technical validation behind its performance, it also stands out as one of the best looking and best sounding intake solutions available for the S58 platform.

That is why it remains the unsung hero of the G8X S58 airflow system.

[josephx66]

Can you make it CARB legal so I can run it in CA with no headaches

[IND-Distribution]

Originally Posted by josephx66

Can you make it CARB legal so I can run it in CA with no headaches

This is something we’ve already discussed with the team at Eventuri. They are based in the UK and we import their product line into the US and as you know CARB compliance is specific to certain states here and is not a requirement in the UK. Now that they have built out a strong and complete intake catalog, they can begin shifting focus toward the certification process.

[WhiteF30M6Spd]

None of this is useful. What does the eventuri parts flow vs stock?

[TopJimmy]

It’s pretty, but the side that slips INTO THE TURBO is the same size restriction as stock. After all that R&D the system seems designed for stock turbos only. Hybrids with bigger wheels would have a restriction right near the turbo fins. They need a collar that stays in for OEM but comes out for increased flow to hybrids.

[///M4Lou]

Originally Posted by TopJimmy

It’s pretty, but the side that slips INTO THE TURBO is the same size restriction as stock. After all that R&D the system seems designed for stock turbos only. Hybrids with bigger wheels would have a restriction right near the turbo fins. They need a collar that stays in for OEM but comes out for increased flow to hybrids.

The MMX has a larger diameter opening that slips into the turbo housing.....

Jimmy - do you know why those new Van der Lee's come w/ stock fitment vs eventuri fitment? I'm not smart enough to why that would matter???

[TopJimmy]

///M4Lou,
The OEM replacement VDL inlets do look very similar to stock because they connect to the stock intakes. Remember they were going for GT3 with homologation rules.

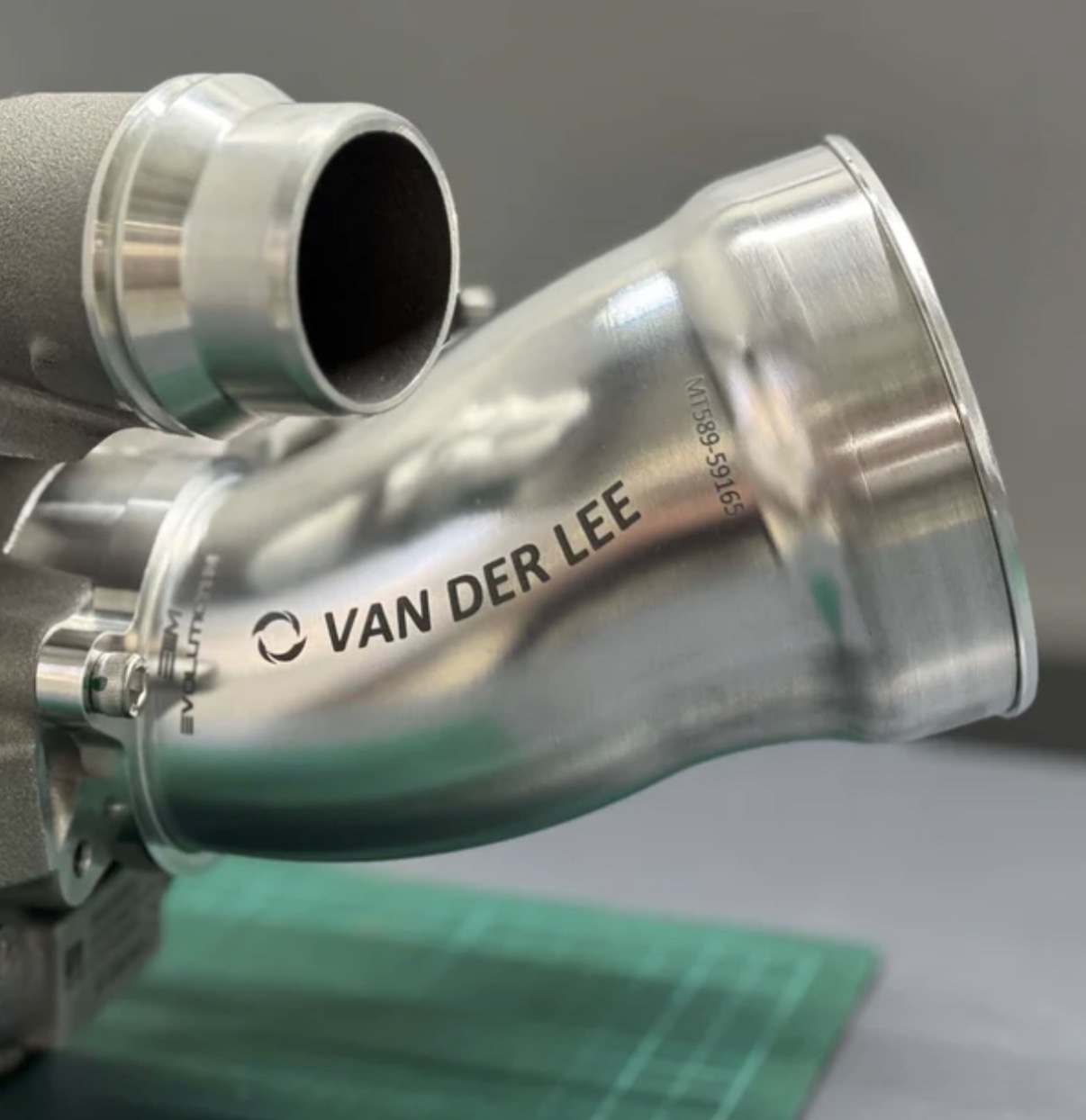

AutoTop seems to have convinced VDL to make the “Evolution M” version that properly flares out and connects to Eventuri intakes.
https://autotopnl.shop/products/evol...bo-kit-bmw-s58

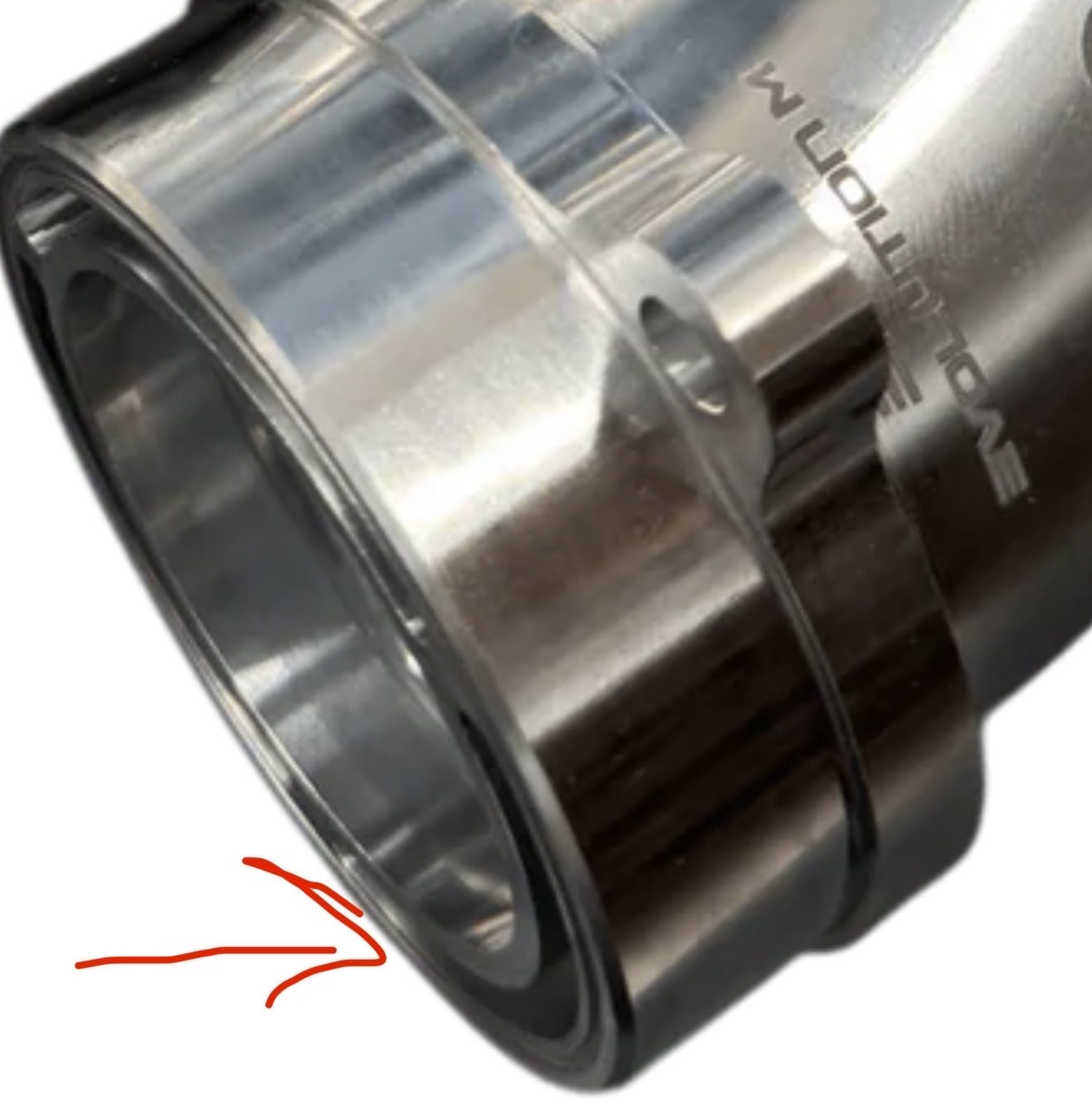

When I look hard at the pics where the inlets go into the turbos there’s still a snout that goes in, but it seems to have the edges milled out which may be some special technology to relieve over-pressure. Looks like the edges of a single NextGen.

[///M4Lou]

Ahh - I got it. I missed the part whereby VDL has their own inlets..

[mike@x-ph.com]

Very cool, thank you for sharing

Eventuri intake maximizes airflow from the turbos to the filter.

Unless the user plans to upgrade the turbos and get bigger inlet connections, this is as good as it's going to get.

[shaunee]

I'd like someone to give me evidence that even on stock blowers ANY intake changes gives a material performance benefit on the blackstuff, without cranking up the boost which inturn will push stock blowers even harder, over and above normal Stage 2 levels.

[TopJimmy]

Originally Posted by shaunee

I'd like someone to give me evidence that even on stock blowers ANY intake changes gives a material performance benefit on the blackstuff, without cranking up the boost which inturn will push stock blowers even harder, over and above normal Stage 2 levels.

Just an intake on stock turbos…probably not even measurable. Gains would be within the error tolerance of a wheel dyno.

Above we were talking about the turbo inlets where they bolt up to the turbo snout. Increasing that diameter along with hybrid turbos (bigger opening and turbo wheel) really allows more efficient flow. Keeping stock inlets with hybrids, or using aftermarket inlets that are stock size at the snout, still restricts flow.

[TopJimmy]

Originally Posted by ///M4Lou

Ahh - I got it. I missed the part whereby VDL has their own inlets..

I just watched AutoTopNL’s YouTube video “BMW M3 GT3 EVO Turbo Kit // Review on Autobahn” where he does show how the EVOs have a “ported snouts” to reduce surge. Skip to 5m10sec in the video.

[IND-Distribution]

Originally Posted by WhiteF30M6Spd

None of this is useful. What does the eventuri parts flow vs stock?

I definitely wouldn’t say this information isn’t useful. When installing performance parts on the G8X M3/M4, owners should gather as much data as possible so they can make a truly informed decision. Just as BMW M’s engineering plays a critical role in the development of the car, the components you choose to add are equally important to how the platform performs as a whole.

Here are the charts, LHS stock intake vs LHS Eventuri and airbox temp log comparisons for stock vs. Eventuri

[IND-Distribution]

Originally Posted by TopJimmy

It’s pretty, but the side that slips INTO THE TURBO is the same size restriction as stock. After all that R&D the system seems designed for stock turbos only. Hybrids with bigger wheels would have a restriction right near the turbo fins. They need a collar that stays in for OEM but comes out for increased flow to hybrids.

What percentage of total G8X owners are actually running upgraded turbos? On the forums and within the community it may seem common but in reality most S58 owners never change the factory turbos. Eventuri’s goal was to engineer the most optimized intake solution for the majority of owners, delivering real performance gains on stock and lightly modified setups where the demand is highest.

[forcefed]

Originally Posted by IND-Distribution

I definitely wouldn’t say this information isn’t useful. When installing performance parts on the G8X M3/M4, owners should gather as much data as possible so they can make a truly informed decision. Just as BMW M’s engineering plays a critical role in the development of the car, the components you choose to add are equally important to how the platform performs as a whole.

Here are the charts, LHS stock intake vs LHS Eventuri and airbox temp log comparisons for stock vs. Eventuri

Inlets have nothing to do with iat's so yes those seem a bit pointless.
Also where are those iats measured at? 30c degree differences between intakes seems sus since they both draw air from the same spot.
Take a 700+ whp g80 with stock intake/inlets and put the Eventuri intake and do back to back dynos, then we can see if the intake/inlets do anything.

[WhiteF30M6Spd]

Originally Posted by IND-Distribution

I definitely wouldn’t say this information isn’t useful. When installing performance parts on the G8X M3/M4, owners should gather as much data as possible so they can make a truly informed decision. Just as BMW M’s engineering plays a critical role in the development of the car, the components you choose to add are equally important to how the platform performs as a whole.

Here are the charts, LHS stock intake vs LHS Eventuri and airbox temp log comparisons for stock vs. Eventuri

Turbo inlets are not for iat's or temperature management. These are supposed to optimize FLOW. So what do they flow in CFM verses the stock inlets? Without that information I have to assume these are worse than OEM.

[shaunee]

Originally Posted by IND-Distribution

What percentage of total G8X owners are actually running upgraded turbos? On the forums and within the community it may seem common but in reality most S58 owners never change the factory turbos. Eventuri’s goal was to engineer the most optimized intake solution for the majority of owners, delivering real performance gains on stock and lightly modified setups where the demand is highest.

Care to explain and provide the real world evidence for these "real performance gains"?

[shaunee]

Originally Posted by TopJimmy

Above we were talking about the turbo inlets where they bolt up to the turbo snout. Increasing that diameter along with hybrid turbos (bigger opening and turbo wheel) really allows more efficient flow. Keeping stock inlets with hybrids, or using aftermarket inlets that are stock size at the snout, still restricts flow.

Agreed..... however, context is everything. People can tend to get too hung up on "what's optimal" and get drawn to new and shiney.

The context here is what actual difference does larger inlets give for any given set-up.

I'm on stock size inlets (MMX) and hybrids. Yet I'm easily able to make 2.4bar and maintain it to redline at 80% WGDC. Benefits that larger inlets and intake would give me, I can't see being material.

I think people can tend to get carried away with the "sales speak" at times.

[///M4Lou]

I watched the video - I tend to agree w/ others, w/o flow testing - it's just jibberish. Hook those inlets up to a flow bench and show the increased flow.

I picked the Mishi intake because they did** do flow testing and showed the increased flow.

[Megahurtz]

On custom tuned G8x's I've seen aftermarket turbo inlets reduce waste gate duty cycle required to reach boost. This equals less heat and more power.

Whether its the inlets that come with the real expensive intake kits or if its the aftermarket inlets themselves, I see the same behavior.

If you can make the same boost with less wastegate duty, that equals more power and lower IAT's post compressor. And technically you can turn up the boost target a hair if your fuel is sufficient.

My bolt on G82 just ran a 5.33 60-130 draggy. The inlets do help.

[shaunee]

Originally Posted by Megahurtz

On custom tuned G8x's I've seen aftermarket turbo inlets reduce waste gate duty cycle required to reach boost. This equals less heat and more power.

Whether its the inlets that come with the real expensive intake kits or if its the aftermarket inlets themselves, I see the same behavior.

If you can make the same boost with less wastegate duty, that equals more power and lower IAT's post compressor. And technically you can turn up the boost target a hair if your fuel is sufficient.

My bolt on G82 just ran a 5.33 60-130 draggy. The inlets do help.

Intake changes can help to improve efficiency, agreed. But in real terms to actually get more power, you'll end up having to screw the turbos harder in most cases (say on stock blowers on this platform), unless you're already outside of their efficiency zone and super heating everything, which is a poor baseline (and tuning strategy) to start with.

For max effort tuning you'll get gains...... for me though, this is an oxymoron.

If I want to make more efficient boost, I'll get a more efficient turbo setup.

[WhiteF30M6Spd]

Originally Posted by shaunee

Intake changes can help to improve efficiency, agreed. But in real terms to actually get more power, you'll end up having to screw the turbos harder in most cases (say on stock blowers on this platform), unless you're already outside of their efficiency zone and super heating everything, which is a poor baseline (and tuning strategy) to start with.

For max effort tuning you'll get gains...... for me though, this is an oxymoron.

If I want to make more efficient boost, I'll get a more efficient turbo setup.

Unless, if they show the flow numbers, that the difference in flow is significant enough. Since the inlet tapers down to stock size I don't see this being the case. I think at best we see maybe 5-10% variation in waste gate duty cycle. Though, again I don't know how valuable that is.
