Lightbulb Evolution of BMW M cars: dimensions (blueprints)

BIMMERPOST
     Featured on BIMMERPOST.com
Evolution of BMW ///M cars: dimensions (blueprints).

Listed below:
  • BMW 'Batmobile'
    • BMW E9 3.0 CSL ('Batmobile')
  • BMW M1
    • BMW E26 M1
  • BMW 1 Series M
    • BMW E82 1M
  • BMW 2 Series M
    • BMW F87 M2 | BMW F87 M2 Competition
  • BMW 3 Series M
    • BMW E30 M3 | BMW E30 M3 (Cabrio) [reserved] | BMW E30 M3 Evolution
    • BMW E36 M3 | BMW E36 M3 (Cabrio)
    • BMW E46 M3 | BMW E46 M3 (Cabrio)
    • BMW E90 M3 | BMW E92 M3 | BMW E93 M3 (Cabrio) [reserved]
    • BMW F80 M3
    • BMW G80 M3
  • BMW 4 Series M
    • BMW F82 M4 | BMW F83 M4 (Cabrio)
    • BMW G82 M4
  • BMW 5 Series M
    • BMW E12 M535i
    • BMW E28 M5
    • BMW E34 M5 | BMW E34 M5 (Touring) [reserved]
    • BMW E39 M5
    • BMW E60 M5 | BMW E61 M5 (Touring)
    • BMW F10 M5
    • BMW F90 M5 | BMW F90 M5 LCI
  • BMW 6 Series M
    • BMW E24 M635CSi
    • BMW E63 M6 | BMW E64 M6 (Cabrio)
    • BMW F13 M6 | BMW F12 M6 (Cabrio) | BMW F06 M6 Gran Coupé [reserved]
  • BMW 8 Series M
    • BMW F92 M8 | BMW F91 M8 (Cabrio) [reserved] | BMW F93 M8 Gran Coupé
  • BMW X Series M
    • BMW X3 M
      • BMW F97 X3 M
    • BMW X4 M
      • BMW F98 X4 M
    • BMW X5 M
      • BMW E70 X5 M [reserved]
      • BMW F85 X5 M
      • BMW F95 X5 M
    • BMW X6 M
      • BMW E71 X6 M
      • BMW F86 X6 M [reserved]
      • BMW F96 X6 M
  • BMW Z Series M
    • BMW Z M Coupé
      • BMW E36/8 Z3 M Coupé
      • BMW E86 Z4 M Coupé
    • BMW Z M Roadster
      • BMW E36/7 Z3 M Roadster
      • BMW E85 Z4 M Roadster
Feel free to suggest corrections, additional or better blueprints.

For a proper FAQ about most models: see the (unofficial) BMW ///M Registry here.

• BMW 'Batmobile' •

BMW E9 3.0 CSL ('Batmobile')
Name:  BMW_E9_3_0_CSL_Origin.jpg
Views: 12414
Size:  158.2 KB

Name:  BMW_E9_3_0_CSL_1975.jpg
Views: 12906
Size:  224.8 KB

• BMW M1 •

BMW E26 M1
Name:  BMW_E26_M1.jpg
Views: 12850
Size:  299.1 KB

• BMW 1 Series M •

BMW E82 1M
Name:  BMW_E82_1M.jpg
Views: 12380
Size:  183.2 KB

• BMW 2 Series M •

BMW F87 M2
Name:  BMW_F87_M2.jpg
Views: 12516
Size:  181.8 KB

BMW F87 M2 Competition
Name:  BMW_F87_M2_Competition.jpg
Views: 12787
Size:  221.7 KB

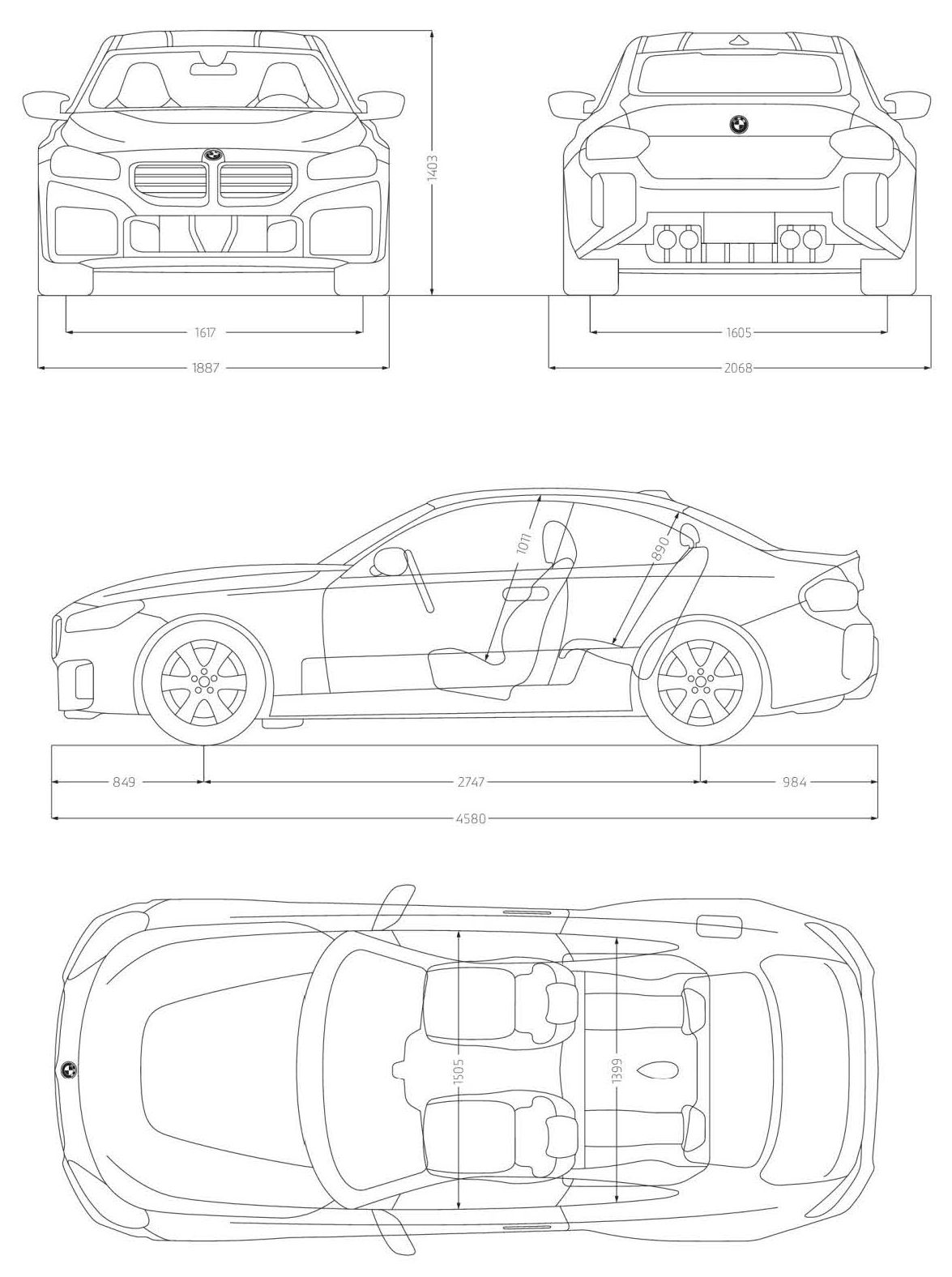

BMW G87 M2
Name:  BMW_G87_M2.jpg
Views: 5477
Size:  178.9 KB

• BMW 3 Series M •

BMW E30 M3
Name:  BMW_E30_M3.jpg
Views: 15290
Size:  193.8 KB

BMW E30 M3 (Cabrio)
[reserved]

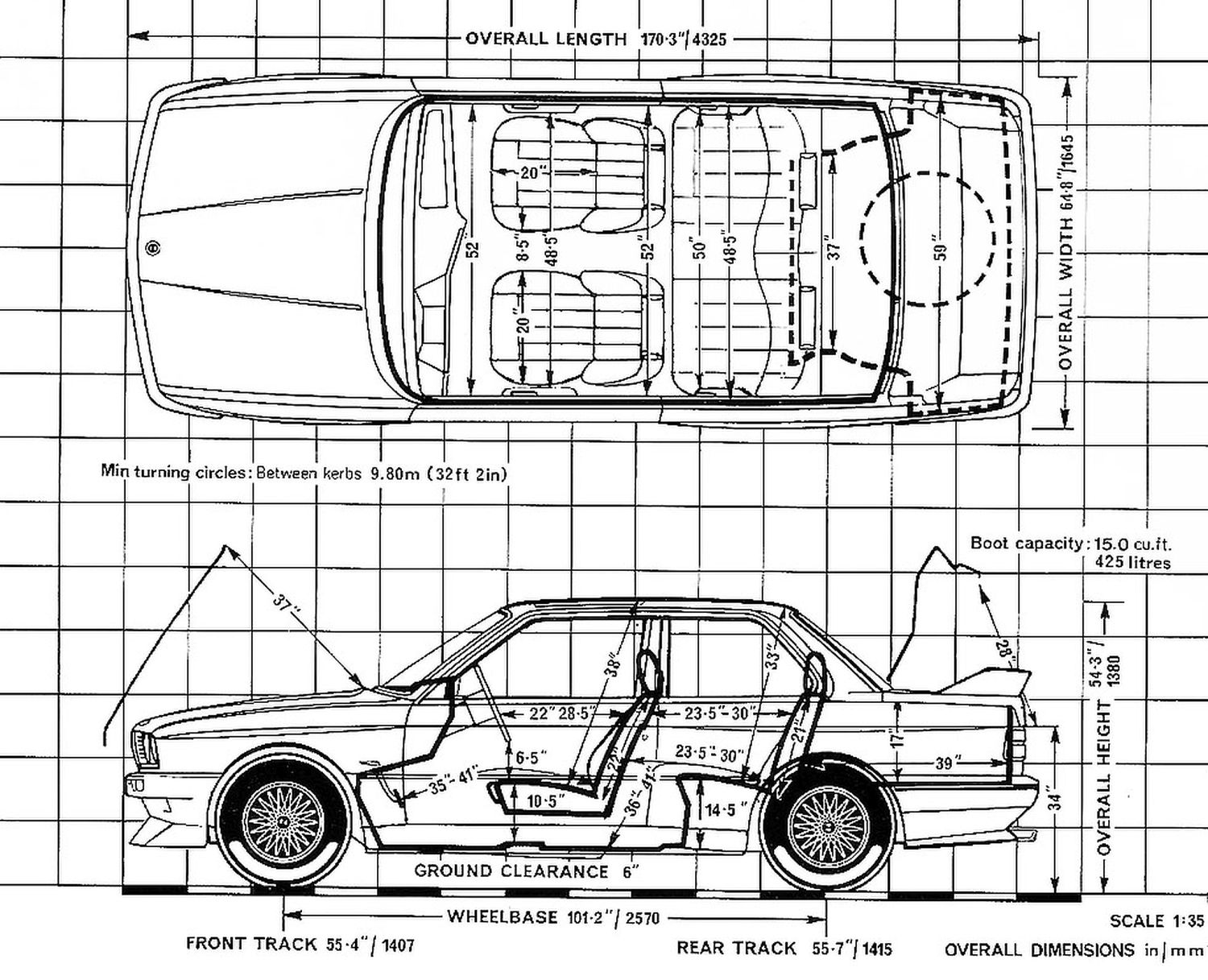

BMW E30 M3 Evolution
Name:  BMW_E30_M3_EVO.jpg
Views: 12947
Size:  331.1 KB

BMW E36 M3
Name:  BMW_E36_M3_1.jpg
Views: 12051

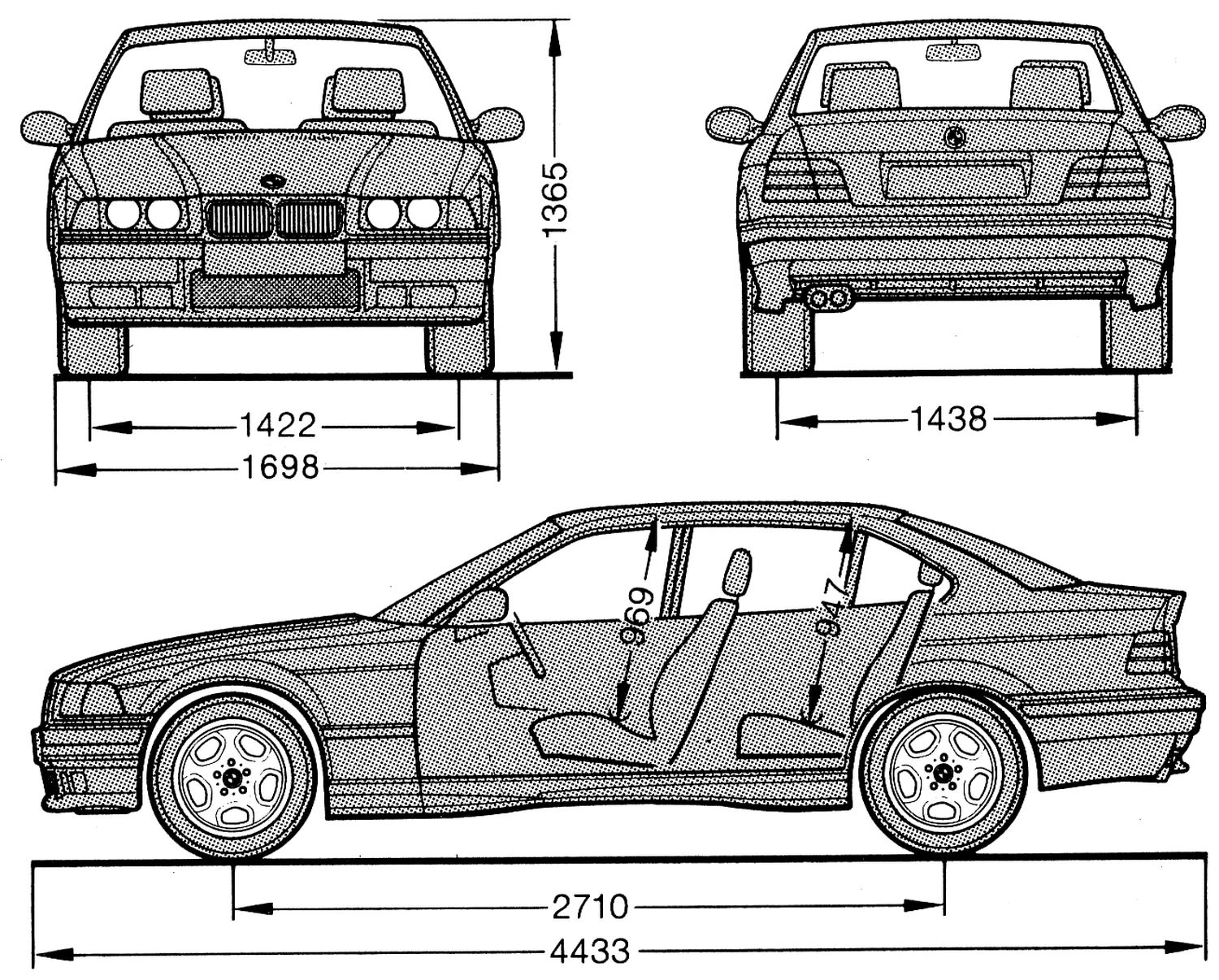

Size:  268.7 KB

Name:  BMW_E36_M3_2.jpg
Views: 11812
Size:  453.5 KB

BMW E36 M3 (Cabrio)
Name:  BMW_E36_M3_Cabrio.jpg
Views: 12404
Size:  449.0 KB

BMW E46 M3
Name:  BMW_E46_M3.jpg
Views: 15101
Size:  325.8 KB

BMW E46 M3 (Cabrio)
Name:  BMW_E46_M3_Cabrio.jpg
Views: 12293
Size:  320.8 KB

BMW E90 M3
Name:  BMW_E90_M3.jpg
Views: 13561
Size:  143.1 KB

BMW E92 M3
Name:  BMW_E92_M3.jpg
Views: 11945
Size:  238.5 KB

BMW E93 M3 (Cabrio)
[reserved]

BMW F80 M3
Name:  BMW_F80_M3.jpg
Views: 12166
Size:  211.8 KB

BMW G80 M3
Name:  BMW_G80_M3.jpg
Views: 14265
Size:  214.2 KB

• BMW 4 Series M •

BMW F82 M4
Name:  BMW_F82_M4.jpg
Views: 12704
Size:  395.0 KB

BMW F83 M4 (Cabrio)
Name:  BMW_F83_M4_Cabrio.jpg
Views: 11501
Size:  149.6 KB

BMW G82 M4
Name:  BMW_G82_M4.jpg
Views: 12020
Size:  211.3 KB

• BMW 5 Series M •

BMW E12 M535i
Name:  BMW_E12_M535i.jpg
Views: 11494
Size:  219.0 KB

BMW E28 M5
Name:  BMW_E28_M5.jpg
Views: 11392
Size:  144.4 KB

BMW E34 M5
Name:  BMW_E34_M5.jpg
Views: 12011
Size:  213.7 KB

BMW E34 M5 (Touring)
[reserved]

BMW E39 M5
Name:  BMW_E39_M5.jpg
Views: 11666
Size:  156.0 KB

BMW E60 M5
Name:  BMW_E60_M5.jpg
Views: 11985
Size:  213.2 KB

BMW E61 M5 (Touring)
Name:  BMW_E61_M5_Touring.jpg
Views: 12278
Size:  303.2 KB

BMW F10 M5
Name:  BMW_F10_M5.jpg
Views: 11619
Size:  164.6 KB

BMW F90 M5
Name:  BMW_F90_M5.jpg
Views: 11434
Size:  156.9 KB

BMW F90 M5 LCI
Name:  BMW_F90_M5_LCI.jpg
Views: 11429
Size:  153.6 KB

• BMW 6 Series M •

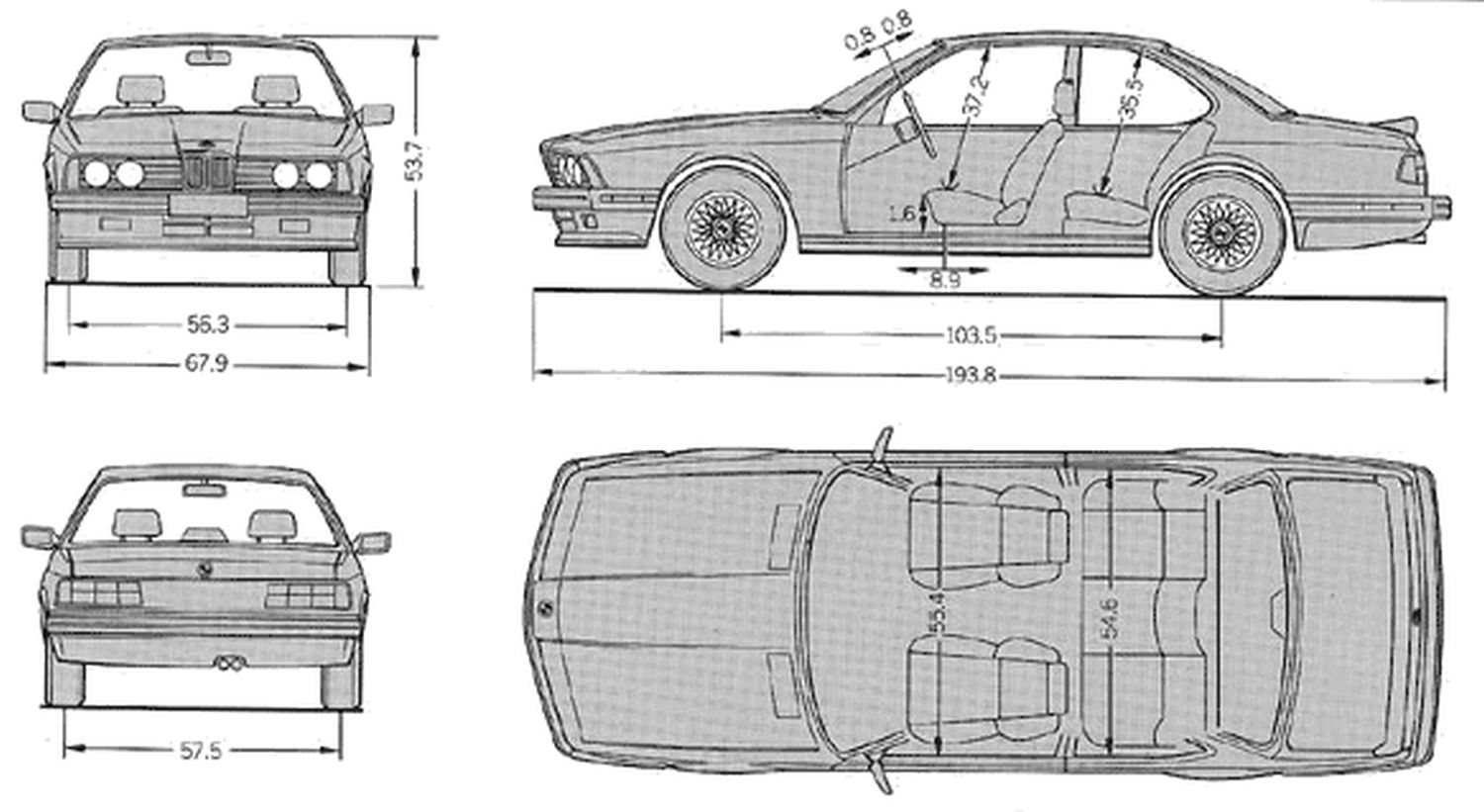

BMW E24 M635CSi
Name:  BMW_E24_M635CSi.jpg
Views: 11645
Size:  223.5 KB

Name:  BMW_E24_M635CSi_2.jpg
Views: 11182
Size:  129.1 KB

BMW E63 M6
Name:  BMW_E63_M6.jpg
Views: 11927
Size:  121.3 KB

BMW E64 M6 (Cabrio)
Name:  BMW_E64_M6_Cabrio.jpg
Views: 11462
Size:  218.1 KB

BMW F13 M6
Name:  BMW_F13_M6.jpg
Views: 11797
Size:  197.6 KB

BMW F12 M6 (Cabrio)
Name:  BMW_F12_M6_Cabrio.jpg
Views: 11398
Size:  196.8 KB

BMW F06 M6 Gran Coupé
[reserved]

• BMW 8 Series M •

BMW F92 M8
Name:  BMW_F92_M8.jpg
Views: 11394
Size:  153.4 KB

BMW F91 M8 (Cabrio)
[reserved]

BMW F93 M8 Gran Coupé
Name:  BMW_F93_M8_GC.jpg
Views: 12250
Size:  211.1 KB

• BMW X Series M •

– BMW X3 M –

BMW F97 X3 M
Name:  BMW_F97_X3M.jpg
Views: 11666
Size:  197.1 KB

– BMW X4 M –

BMW F98 X4 M
Name:  BMW_F98_X4M.jpg
Views: 11713
Size:  199.7 KB

– BMW X5 M –

BMW E70 X5 M
[reserved]

BMW F85 X5 M
Name:  BMW_F85_X5M.jpg
Views: 11233
Size:  197.6 KB

BMW F95 X5 M
Name:  BMW_F95_X5M.jpg
Views: 11303
Size:  144.3 KB

– BMW X6 M –

BMW E71 X6 M
Name:  BMW_E71_X6M.jpg
Views: 11504
Size:  177.3 KB

BMW F86 X6 M
[reserved]

BMW F96 X6 M
Name:  BMW_F96_X6M.jpg
Views: 11175
Size:  234.1 KB

• BMW Z Series M •

– BMW Z M Coupé –

BMW E36/8 Z3 M Coupé
Name:  BMW_E36_8_Z3M_Coupé.jpg
Views: 11261
Size:  175.8 KB

BMW E86 Z4 M Coupé
Name:  BMW_E86_Z4M_Coupé.jpg
Views: 11356
Size:  203.5 KB

– BMW Z M Roadster –

BMW E36/7 Z3 M Roadster
Name:  BMW_E36_7_Z3M_Roadster.jpg
Views: 11376
Size:  158.6 KB

BMW E85 Z4 M Roadster
Name:  BMW_E85_Z4M_Roadster.jpg
Views: 11302
Size:  218.7 KB

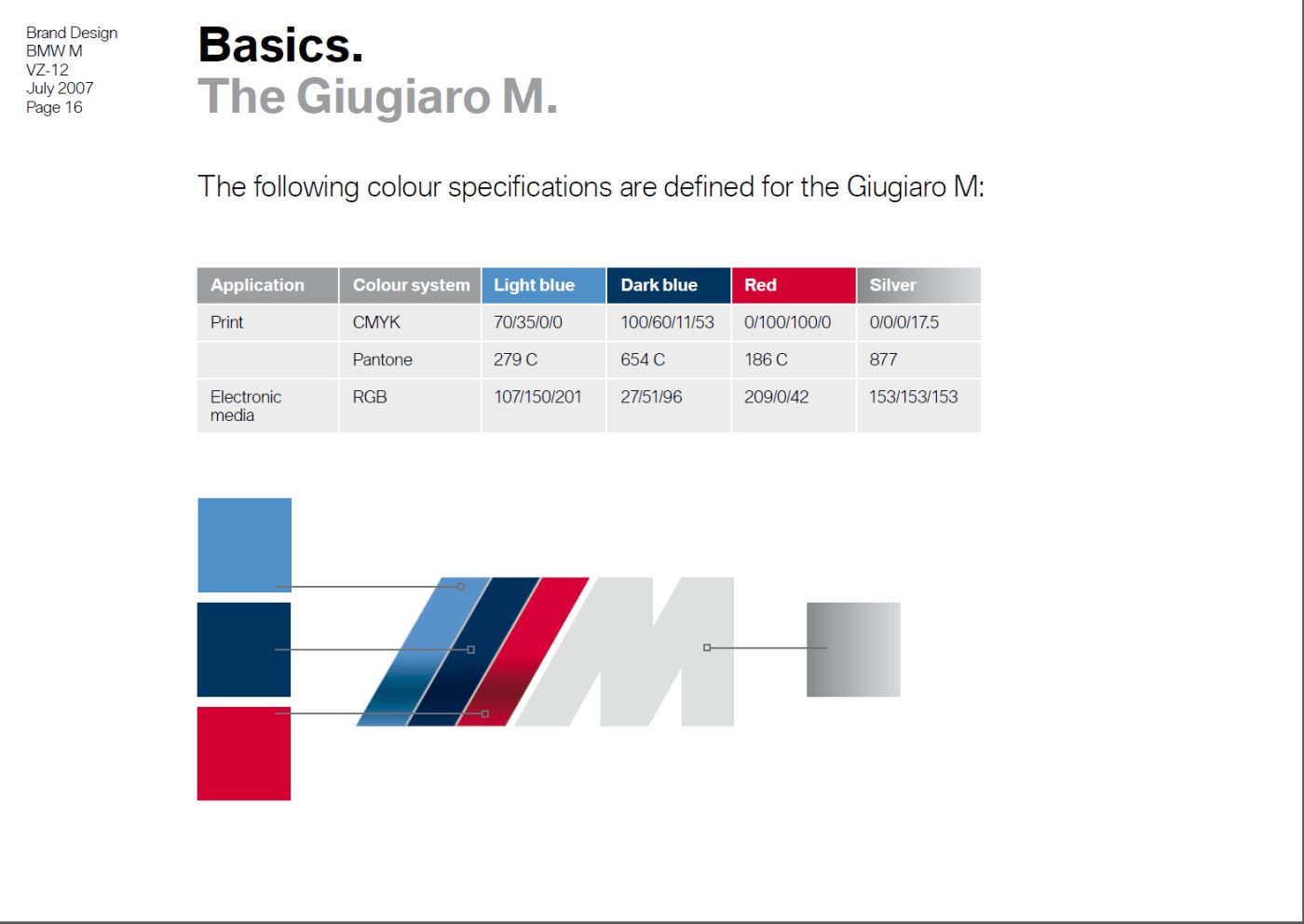

Name:  M_Colors_01.jpg
Views: 8506
Size:  66.4 KB

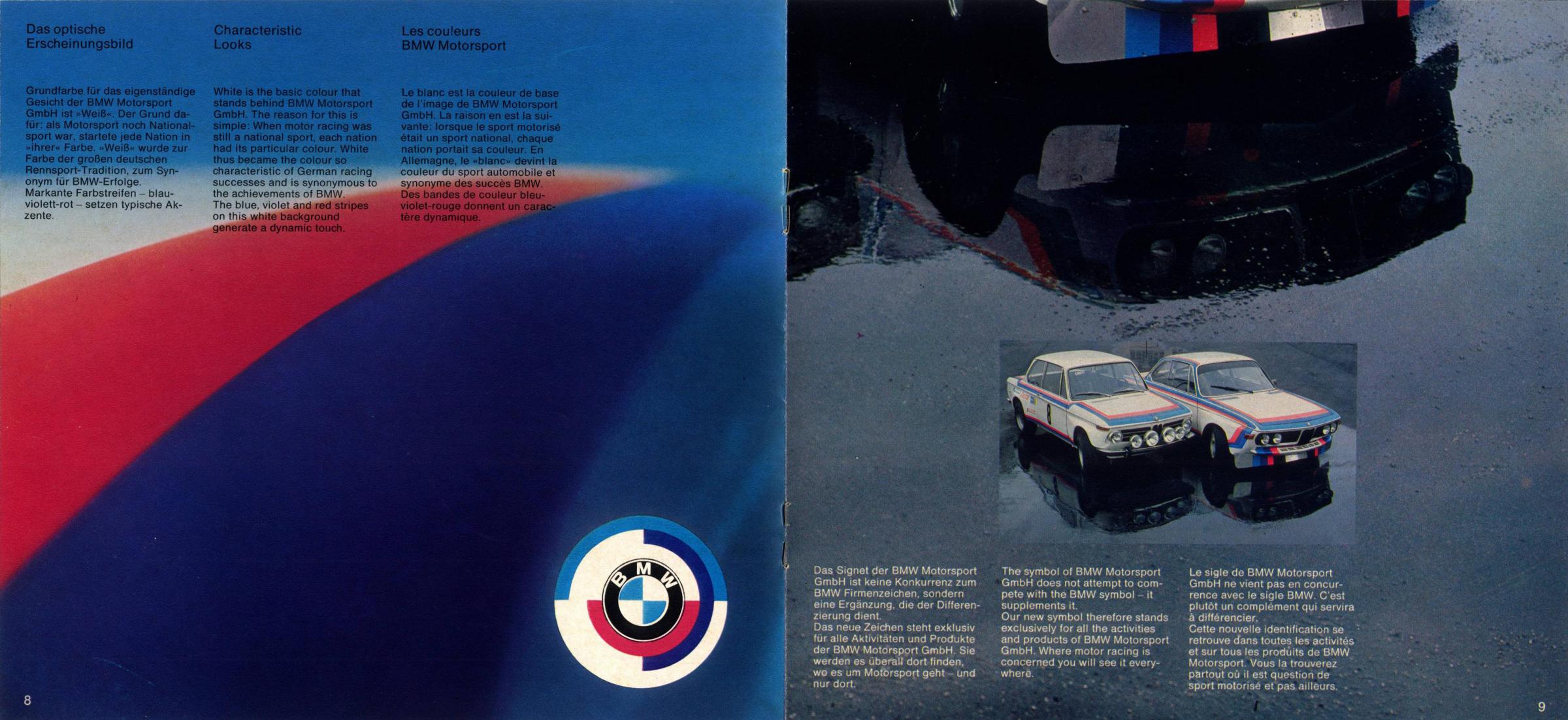

Name:  M_Colors_02.jpg
Views: 18026
Size:  323.2 KB
__________________
///M is art Artemis
Appreciate 32
BMWGirlFL4804.00
Rkt4848.00
swampfox941069.00
E46PP19.00
EXE461918.50
Suds1389.00
W///6988.50
QM284.00
nathanm4600.00
m20e30871026.00
werdn559.50
icenbp24.00
MPoweRo421.00
clutchdj1385.00
Davil5421.50
m3fuz199.00
agentrnge323.50
RJD851125.00
CSBM52403.00
TI.3VOM73.50
02M3ForMe2836.50
Nkc1562.50
jmg16594.00
shawnhayes1093.50
      03-27-2021, 10:12 PM   #2
BMWGirlFL
Colonel
BMWGirlFL's Avatar
4804
Rep
2,020
Posts

Drives: Z4 M40i
Join Date: Jan 2019
Location: South Florida

iTrader: (0)

Garage List
Sticky!
Appreciate 5
Rkt4848.00
Artemis21601.50
spidy512380.50
JTO244822.50
harry.h64.50
      03-28-2021, 01:51 PM   #3
brad850csi
Colonel
1153
Rep
2,278
Posts

Drives: 16 F13 M6 Comp
Join Date: Jan 2015
Location: Auckland, New Zealand

iTrader: (0)

Someone spent a hell of a long time looking for all of the press releases, well done!

__________________
SCOTT26 "So as an admirer of the M5 and a potential customer of an M5 Touring. I would run naked around the streets of Garching if they were to offer one."
Appreciate 3
cncmastr1467.50
JustChris15984.50
harry.h64.50
      03-30-2021, 11:22 AM   #4
Cabbage
Lieutenant
Cabbage's Avatar
United_States
316
Rep
507
Posts

Drives: 2021 BMW M550i xDrive Sedan
Join Date: Dec 2020
Location: New York

iTrader: (0)

Garage List
This is way to interesting to look at!
__________________
2021 BMW ///M550i xDrive Sedan (G30 LCI) (Individual Tanzanite Blue II Metallic/Mocha Nappa)
Appreciate 0
      03-30-2021, 11:24 AM   #5
SonicM2CS
New Member
27
Rep
5
Posts

Drives: 2020 M2CS 2020 X5 M50i
Join Date: Mar 2021
Location: Caanda

iTrader: (0)

Thank you for the collections! Thumbs up!
Appreciate 0
      03-30-2021, 11:48 AM   #6
_E90S65_
Captain
_E90S65_'s Avatar
676
Rep
642
Posts

Drives: 2021 M340i
Join Date: Dec 2020
Location: Pluto

iTrader: (0)

This is excellent! Thank you for posting these.
Appreciate 0
      03-30-2021, 12:13 PM   #7
W///
Lieutenant General
W///'s Avatar
6989
Rep
12,132
Posts

Drives: F87 M2C, E92 M3, E36 M3, Z4MR
Join Date: Sep 2011
Location: SC

iTrader: (13)

So cool, thanks for sharing! Will definitely save this on my harddrive!
__________________
Current: 19 F87 M2C / 08 E92 M3 / 07 E85 Z4M Roadster / 99 E36 M3
Appreciate 0
      03-30-2021, 12:20 PM   #8
addy27
Captain
United_States
353
Rep
884
Posts

Drives: F10 550i
Join Date: Jan 2008
Location: Bay Area, CA

iTrader: (2)

Never realized the E92 M3 is longer than the E90 M3!!
Appreciate 1
JTO244822.50
      03-30-2021, 12:23 PM   #9
GOLFFRR
BimmerPost Supporting Vendor
GOLFFRR's Avatar
9405
Rep
26,509
Posts


Drives: GOLFFRR cart
Join Date: Mar 2009
Location: we sell BMWs to "ALL" US states

iTrader: (4)

wow super cool! crazy how much they have grown!
would be a cool printout and framed in my garage
__________________

BEFORE YOU BUY YOUR NEXT BMW, PM ME FIRST WE CAN HOOK YOU UP!
Jimmy Miller:jmiller@stevethomasbmw.com Cell:805-509-2048
If you have any issues getting a hold of Jimmy M PLEASE PM me, I'm available everyday till 545pm!
Appreciate 0
      03-30-2021, 12:24 PM   #10
JustChris
General
JustChris's Avatar
United Kingdom
15985
Rep
24,360
Posts

Drives: Z4M40i
Join Date: Jul 2013
Location: UK

iTrader: (0)

Great work Artemis or today AKA dimensionsMis
__________________
My car made front page of Bimmerpost
Appreciate 0
      03-30-2021, 01:13 PM   #11
KillerExcessive
Private First Class
130
Rep
133
Posts

Drives: E92 6MT F80 6MT F87 6MT G82CX
Join Date: Aug 2020
Location: PNW

iTrader: (0)

From E39 to F90, the length of the car grew a total of 3.94%. During the same timespan, the growth from E46 to G80 has been 6.72%.

70% more growth in length in the 3er compared to the 5er.

Very interesting.
Appreciate 2
harry.h64.50
chris7196193.00
      03-30-2021, 01:38 PM   #12
F80DK
Private First Class
F80DK's Avatar
Denmark
311
Rep
181
Posts

Drives: 2018 M3 Comp. Maledives Blue
Join Date: Aug 2018
Location: Denmark

iTrader: (0)

Garage List
  [0.00]
  [0.00]
Nice! E30 M3 instantly recognizeable - like a great white shark! Thx for sharing in this perspective.
Appreciate 0
      03-30-2021, 01:40 PM   #13
///MPhatic
The Seeker
///MPhatic's Avatar
9008
Rep
1,718
Posts

Drives: OG M2
Join Date: Aug 2008
Location: USA

iTrader: (0)

This is fantastic, thanks for sharing!

And as I suspected...
Attached Images

Appreciate 4
Ikester192086.00
bandwagn199.50
harry.h64.50
02M3ForMe2836.50
      03-30-2021, 04:16 PM   #14
someMoreMplease
Private
United_States
36
Rep
57
Posts

Drives: 2016 BMW M4 AY DCT
Join Date: Dec 2016
Location: PA

iTrader: (0)

Amazing! Thank you!
Appreciate 0
      03-30-2021, 10:37 PM   #15
IRNM3
Private
68
Rep
78
Posts

Drives: 18 BMW F80 M3
Join Date: Feb 2021
Location: Miami

iTrader: (0)

This is awesome. I'd love to see a stack of the m3 from beginning to the g80
Appreciate 0
      03-30-2021, 10:51 PM   #16
BMWGirlFL
Colonel
BMWGirlFL's Avatar
4804
Rep
2,020
Posts

Drives: Z4 M40i
Join Date: Jan 2019
Location: South Florida

iTrader: (0)

Garage List
Name:  BMW-M3-Absatz-Entwicklung-E30-E36-E46-E90-F80.jpg
Views: 7721
Size:  437.8 KB

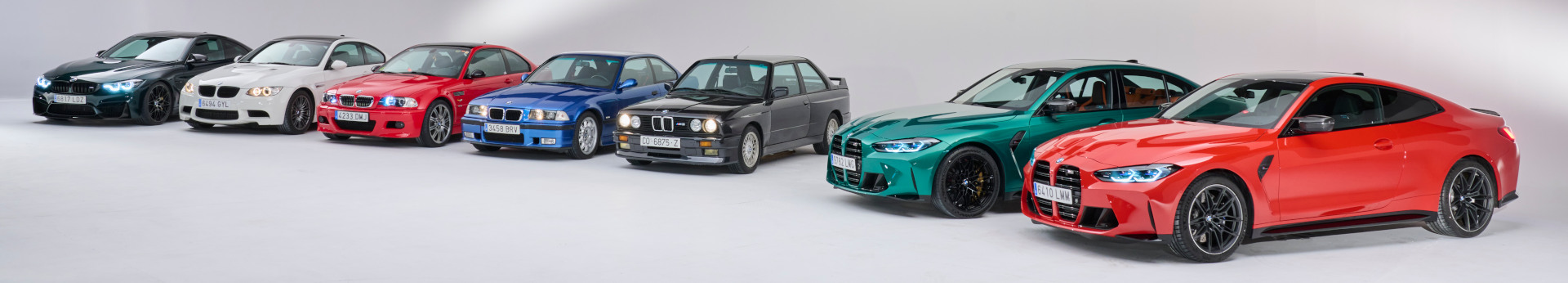

Name:  BMW-M3-M4-F82-E92-E46-E36-E30-G80-G82.jpg
Views: 7457
Size:  162.3 KB
Appreciate 4
Artemis21601.50
IRNM368.00
harry.h64.50
02M3ForMe2836.50
      03-31-2021, 01:24 AM   #17
Artemis
Moderator
Artemis's Avatar
21602
Rep
12,348
Posts

Drives: BMW M2 Competition
Join Date: Jun 2011
Location: Belgium

iTrader: (0)

Quote:
Originally Posted by IRNM3 View Post
This is awesome. I'd love to see a stack of the m3 from beginning to the g80
The badge is like a birth certificate.

Regardless of the badge, it's all about the DNA and legitimate expectations about the bloodline.

Name:  E30_M3_Sport_Evo_02.jpg
Views: 7024
Size:  237.0 KB

Name:  E30_M3_Sport_Evo_01.jpg
Views: 7046
Size:  309.1 KB
__________________
///M is art Artemis
Appreciate 2
BMWGirlFL4804.00
harry.h64.50
      03-31-2021, 06:34 AM   #18
Advevo
Banned
571
Rep
1,170
Posts

Drives: M2 Competition, E30 M3 DTM
Join Date: Apr 2006
Location: Country where the taxes are too high!!

iTrader: (0)

It is insane how big the cars have become. Nice for family outings. But the bigger the car the more boring it is to drive in cornering.
Appreciate 1
harry.h64.50
      03-31-2021, 06:49 AM   #19
Artemis
Moderator
Artemis's Avatar
21602
Rep
12,348
Posts

Drives: BMW M2 Competition
Join Date: Jun 2011
Location: Belgium

iTrader: (0)

Quote:
Originally Posted by Advevo View Post
It is insane how big the cars have become. Nice for family outings. But the bigger the car the more boring it is to drive in cornering.
Two pertinent Colin Chapman quotes:
  • "Simplify, then add lightness."
  • "Adding power makes you faster on the straights. Subtracting weight makes you faster everywhere."
__________________
///M is art Artemis
Appreciate 1
harry.h64.50
      03-31-2021, 08:00 AM   #20
Ikester19
Captain
Ikester19's Avatar
Australia
2086
Rep
901
Posts

Drives: G20 M340ix; F30 328i msport
Join Date: Jun 2017
Location: Brisban

iTrader: (0)

Garage List

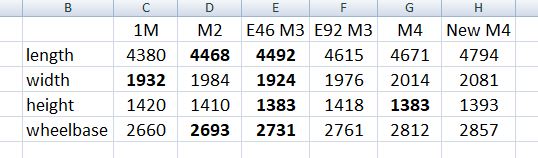

So based on this can we assume the G87 M2 dimensions should fall in between the E46 M3 and E92 M3 which will be perfect!
Appreciate 0
      03-31-2021, 08:02 AM   #21
AstridWilma
Registered
0
Rep
1
Posts

Drives: BMW X5
Join Date: Mar 2021
Location: FINLAND

iTrader: (0)

Quote:
Originally Posted by _E90S65_ View Post
This is excellent! Thank you for posting these.
Yeah, I like the presentation. BMW has come a long way. BMW has always being my favorite car.

Last edited by AstridWilma; 05-25-2021 at 09:01 AM..
Appreciate 0
      03-31-2021, 08:10 AM   #22
G333
Enlisted Member
Slovenia
51
Rep
47
Posts

Drives: M340i, M3, Mini GP1, MX-5
Join Date: Aug 2019
Location: Slovenia

iTrader: (0)

Very good made.

But there is missing one car BMW 2002 turbo which was first car made by M division.

__________________
Current garage:
2022 Mazda MX-5 ND 184
2019 BMW M340i Xdrive
2008 BMW M3 e92
2006 Mini Cooper R53 JCW GP
Appreciate 2
harry.h64.50
02M3ForMe2836.50
Post Reply

Bookmarks

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -5. The time now is 11:06 AM.




g80
Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2023, vBulletin Solutions Inc.
1Addicts.com, BIMMERPOST.com, E90Post.com, F30Post.com, M3Post.com, ZPost.com, 5Post.com, 6Post.com, 7Post.com, XBimmers.com logo and trademark are properties of BIMMERPOST
